상세 정보 |
|||
| 기술: | 초여과 장치 | 디자인: | 미끄럼 탑재 |
|---|---|---|---|
| 흐름 / TPD를 침투하세요: | 38~1500/skid | 흐름 / 하루당 갤런을 침투하세요: | 10,000~403,000 |
| 회복율: | 90~98% | TDS에게 / ppm을 공급하세요: | <35> |
| 물 임시.: | 5~35˚C | PH: | 2~11 |
| TSS/mg/L: | <100> | 혼탁도: | <300> |
| Free chlorine mg/L: | 0 | 용해 철 mg/L: | <0> |
| 보증: | 1년이요 | 미끄럼 재료: | SS304/SS316L,carbon 강철 |
| 전압: | 380V,415V,220V, 맞춤화될 수 있습니다 | 애플리케이션: | 물 정화 동작, 정수기, 제약의, 식수, 식량 |
| 사이즈: | Depends,1750*550*1650mm | 기능: | 물 정화, 수신 전용 예비 처리 |
| 염분제거 비율: | 99%,99.7% | 제어: | 전자적, 설명서 / PLC |
| UF 막: | / 중국이 만든 하이드러노틱스 또는 다우지수 | 펌프: | CNP / 그룬트포스, CNP |
| 강조하다: | 1500TPD UF 물 정화 동작 system,380V UF 물 정화 동작 system,1500TPD 한외여과장치 |
||
제품 설명

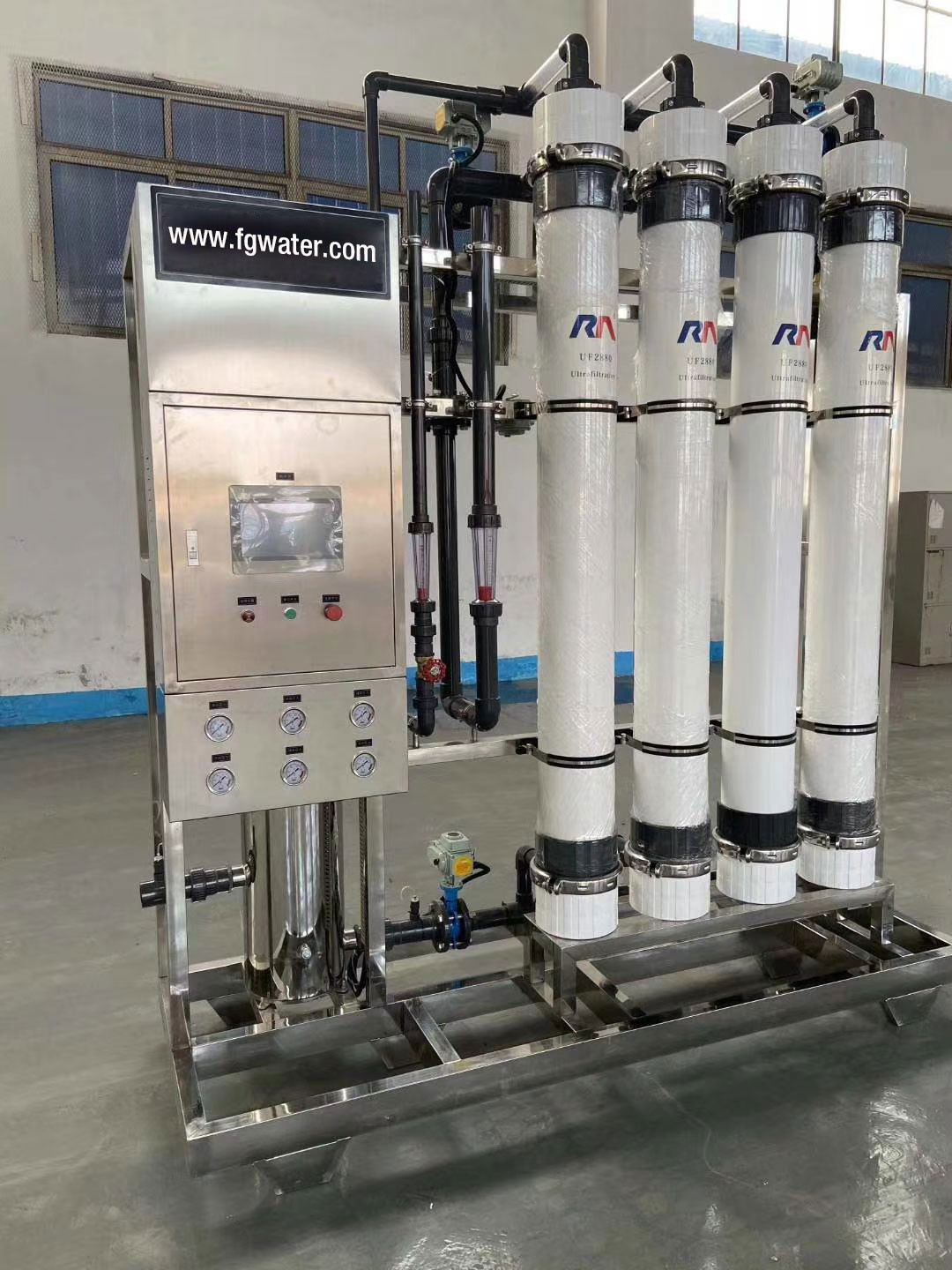

Ultrafiltration hollow fiber water treatment and purification system 38TPD~1500TPD
Ultrafiltration systems are designed to reliably remove suspended solids, turbidity, bacteria, pathogens and viruses from water. These systems are made to be economical, compact, and capable of allowing decreased plugging, and greater solids loading. The UF membranes ensure maximum filtration performance with high flux, including the system's resistance to chemicals and high tolerance to changing temperatures.
How Ultrafiltration (UF) Systems Work?
Ultrafiltration (UF) systems have diverse membrane filtrations where hydrostatic pressure pushes solvents against a very fine membrane. They block suspended particulates and solids that are large while water and solutes with a lower molecular weight are allowed to flow through the membrane.
Industry and research employ this separation process for purifying and concentrating macromolecular (103 - 106 Da) solutions, which are usually protein solutions. Ultrafiltration is similar to microfiltration, nanofiltration or gas separation, except it differs in the molecule sizes it blocks.
To meet critical discharge criteria, ultrafiltration systems remove the need for clarifiers and multimedia water filtration. Effective ultrafiltration systems use membranes that can be immersed, back-flushable, and air scoured. Spiral wound UF/MF membranes offer excellent performance for the clarification of process water and waste water.
Industrial Ultrafiltration UF Systems
| Model No. | Capacity - Surface Water | Capacity - Seawater | Capacity - Ground Water | ||||
| Flux at 25 GFD | Flux at 35 GFD | Flux at 53 GFD | Qty of | ||||
| GPD | M3/ Day | GPD | M3/ Day | GPD | M3/ Day | UF Modules | |
| UF-10K-1 | 10,080 | 38 | 15,840 | 60 | 25,920 | 98 | 1 |
| UF-20K-2 | 20,160 | 76 | 30,956 | 117 | 50,655 | 192 | 2 |
| UF-40K-4 | 40,320 | 153 | 63,541 | 241 | 103,976 | 394 | 4 |
| UF-60K-6 | 60,480 | 229 | 94,497 | 358 | 154,631 | 586 | 6 |
| UF-80K-8 | 80,640 | 305 | 127,082 | 481 | 207,952 | 788 | 8 |
| UF-100K-10 | 100,800 | 382 | 158,038 | 599 | 258,608 | 980 | 10 |
| UF-120K-12 | 120,960 | 458 | 190,623 | 722 | 311,929 | 1,182 | 12 |
| UF-161K-16 | 161,280 | 611 | 254,164 | 963 | 415,905 | 1,575 | 16 |
| UF-201K-20 | 201,600 | 764 | 316,076 | 1,197 | 517,215 | 1,959 | 20 |
| UF-262K-26 | 262,080 | 993 | 412,202 | 1,561 | 674,512 | 2,555 | 26 |
| UF-302K-30 | 302,400 | 1,145 | 475,743 | 1,802 | 778,489 | 2,949 | 30 |
| UF-403K-40 | 403,200 | 1,527 | 633,781 | 2,401 | 1,037,096 | 3,928 | 40 |
Ultrafiltration (UF) Systems Advantages
Ultrafiltration (UF) membranes systems are more reliable than a conventional multi-media filter, which removed approximately 10 micron or larger of matter, where an ultrafiltration membrane pore size ranges from 0.01 to 0.10 micron. In addition to superior turbidity removal, UF membranes efficiently remove bacteria and most viruses.
- Superior filtration performance with high flux
- Very small nominal pore diameter (0.03 µm)
- Efficiently removes bacteria and viruses
- Occasionally back washed and air scoured to boost performance and removing the fouling layer to extend operating life
- Low fouling membrane modules
- UF Outside-In or Inside-Out Configuration permits reduced plugging and higher solids loading
- Basic, vertical, modular design permits low cost, compact systems
- Effective membrane cleaning has a high chemical resistance and temperature tolerance
