상세 정보 |
|||
| 제품 모델: | FG-UF-ECO(에너지 효율 시스템) | 공칭 용량: | 10-40TPH |
|---|---|---|---|
| University of Florida의 멤브레인 유형: | 저압 PVDF 중공사 | 에너지 소비: | 0.25 - 0.35kWh/m³(표준보다 30% 낮음) |
| 시스템 복구: | 92 - 96% | 스키드 소재: | 단열 기능이 있는 304 스테인레스 스틸 |
제품 설명

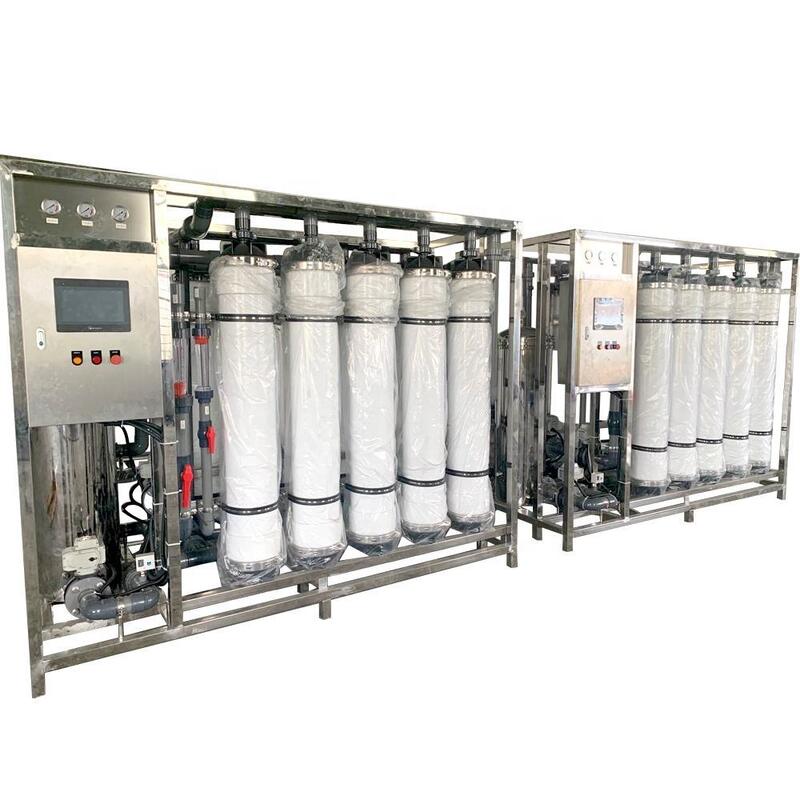

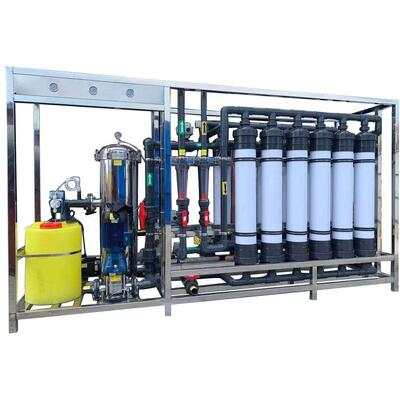

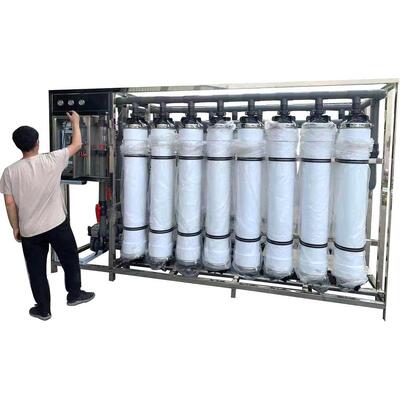

10-40 TPH UF System 30% Energy Saving Designed For Sustainable Operations
10-40 TPH Capacity | 30% Energy Saving | Designed for Sustainable Operations
Product Overview
The FG-UF-ECO is a groundbreaking energy-efficient ultrafiltration system engineered specifically for applications where operational costs and sustainability are paramount. With an intelligent design that reduces energy consumption by 30% compared to conventional UF systems, this model delivers exceptional performance while minimizing environmental impact and operational expenses.
Featuring advanced low-pressure membranes, optimized pump systems, and intelligent control algorithms, the FG-UF-ECO maintains SDI output consistently below 3 while consuming significantly less power. This makes it ideal for continuous operations in energy-sensitive environments.
Key Energy-Saving Features:
• Intelligent variable frequency drive (VFD) pumps adjust energy use based on actual demand
• Low-pressure PVDF membranes (0.8-1.2 bar operating pressure) reduce pumping requirements
• Heat recovery system captures thermal energy from backwash cycles
• Sleep mode activation during low-demand periods
• Solar-ready power integration for hybrid energy operation
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Code | FG-UF-ECO |
| Nominal Capacity Range | 10-40 TPH (2,640 - 10,560 GPD) |
| UF Membrane Type | Low-Pressure PVDF Hollow Fiber |
| Nominal Pore Size | 0.03 μm |
| Operating Pressure | 0.08 - 0.3 MPa (0.8 - 3 bar) |
| Operating Temperature | 5 - 40°C |
| SDI Output | ≤3 (Typically 2.0-2.5) |
| Turbidity Removal | >99.5% (Output <0.2 NTU) |
| Energy Consumption | 0.25 - 0.35 kWh/m³ (30% less than standard) |
| System Recovery | 92 - 96% |
| Control System | PLC with Energy Optimization Algorithm, HMI Touchscreen |
| Power Supply | 220V/380V 3-Phase, Solar-Ready Connection |
| Pump Type | High-Efficiency VFD Pumps with Sleep Mode |
| Noise Level | <65 dB(A) at 1 meter distance |
| Dimensions (Standard 20 TPH) | 2500 × 1200 × 1800 mm |
| Skid Material | 304 Stainless Steel with Thermal Insulation |
| Energy Star Rating Equivalent | EE-1 (Highest Efficiency Grade) |
Application Scenarios
The FG-UF-ECO is specifically designed for facilities where energy efficiency, operational cost reduction, and environmental sustainability are critical considerations:
Data Centers
Provides reliable water treatment for cooling systems while minimizing energy consumption that directly impacts PUE (Power Usage Effectiveness) metrics.
- Singapore Data Center: Reduced water treatment energy consumption by 32%, contributing to LEED Platinum certification
- 24/7 operation with <1% downtime over 3 years
- Integration with existing Building Management System (BMS)
Hospitals & Healthcare
Ensures water quality for medical equipment, dialysis, and sterilization while operating quietly and efficiently in sensitive environments.
- Hong Kong Hospital: Installed in basement facility with 35% energy saving versus previous system
- Silent operation critical for patient recovery areas
- Reliable water quality for critical medical applications
Commercial Buildings
Ideal for shopping malls, hotels, and office towers where water treatment supports HVAC systems, restaurants, and amenities.
- Dubai Shopping Center: 28% reduction in overall water treatment energy costs
- Space-efficient design for mechanical rooms
- Low maintenance requirements ideal for property management
Why Choose FG-UF-ECO?
The FG-UF-ECO represents the future of sustainable water treatment technology, combining German engineering precision with intelligent energy management:
