Low Energy Consumption Seawater Reverse Osmosis(RO) Elements
제품 상세 정보:
| Place of Origin: | China |
| 브랜드 이름: | T-TECH |
| 인증: | CE |
| Model Number: | Various models available |
| 문서: | _RO-membranes.pdf |
결제 및 배송 조건:
| Minimum Order Quantity: | 1 pc（This product can be produced with your brand on bulk order） |
|---|---|
| 가격: | 협상 가능 |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Payment Terms: | ,T/T |
| Supply Ability: | 60000 Units per Month |
|
상세 정보 |
|||
| Membrane type: | Seawater Reverse Osmosis(RO) Elements | Membrane model: | Various models available |
|---|---|---|---|
| The Brand: | China brand | Permeate Flow Rate GPD(m3/d): | 7000(26.5) 7700(29.1) 7500(28.4) 6500(24.6) 8000(30.3) 9000(34.1) 9900(37.5) |
| Active Membrane Area ft2(m2): | 400(37) 440(41) 400(37) | Feed Spacer (mil): | 34,28 |
| Main Usages: | seawater desalination, high-concentration salt wastewater reuse, minimum-zero discharge treatment, material concentration | Product Function: | Remove Salt TDS |
제품 설명

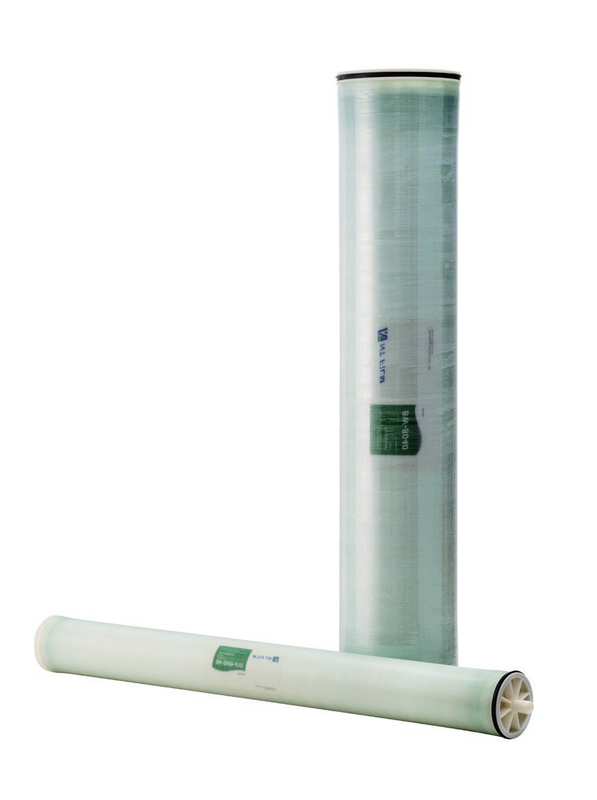

Low Energy Consumption Seawater Reverse Osmosis(RO) Elements
Advanced Desalination Technology for High-Salinity Waters
Seawater Reverse Osmosis (SWRO) elements are engineered to convert high-salinity seawater into potable or industrial-grade freshwater through semi-permeable membrane filtration. Designed to withstand extreme osmotic pressure and corrosive marine environments, these elements deliver unmatched salt rejection rates while minimizing energy consumption.
Product Paramenters
| Product | Permeate Flow Rate GPD(m3/d) |
Stabilized Salt Rejection (%) |
Minimum Salt Rejection (%) | Active Membrane Feed Spacer Areaft²(m²) (mil) |
|||
| High Rejection¹ | BW-365-34 | 10500(39.7) | 99.6 | 99.4 | 365(34) | 34 | |
| BW 400 | 11000(41.6) | 99.6 | 99.4 | 400(37) | 28 | ||
| BW 440 | 12650(47.9) | 99.6 | 99.4 | 440(41) | 28 | ||
| BW 400-34 | 11000(41.6) | 99.6 | 99.4 | 400(37) | 34 | ||
| Anti-fouling¹ | BW-FR 365-34 | 10500(39.7) | 99.6 | 99.4 | 365(34) | 34 | |
| BW-FR 400-34 | 11000(41.6) | 99.6 | 99.4 | 400(37) | 34 | ||
| BW-FR 400-LD | 11000(41.6) | 99.6 | 99.4 | 400(37) | 34-LD | ||
BW-XFR 400-34 |
11500(43.5) | 99.7 |
99.45 |
400(37) | 34 |
||
BW-XFR 400-LD |
11500(43.5) | 99.7 |
99.5 |
400(37) | 34-LD |
||
| Product | Permeate Flow Rate GPD(m3/d) |
Stabilized Salt Rejection (%) |
Minimum Salt Rejection (%) | Active Membrane Area ft²(m²) |
Feed Spacer (mil) |
|||
| Low energy² | LE 400 | 11000(41.6) | 99.5 | 99.2 | 400(37) | 28 | ||
| LE 440 | 12500(47.3) | 99.5 | 99.2 | 440(41) | 28 | |||
| Anti-fouling, Low energy² |
LE-FR 400-34 | 11000(41.6) | 99.5 | 99.2 | 400(37) | 34 | ||
| LE-FR 400-LD | 11000(41.6) | 99.5 | 99.2 | 400(37) | 34-LD | |||
| eXtra low pressure³ | XLP400-34 | 13200(50.0) | 99.2 | 98.7 | 400(37) | 34 | ||
| XLP400-LD | 13200(50.0) | 99.2 | 98.7 | 400(37) | 34-LD | |||
| XLP440 | 14500(54.9) | 99.2 | 98.5 | 440(41) | 28 | |||
| Test condition 2:2000ppm NaCl,test pressure 150psi(10.3bar),77F(25℃),pH 7,15%recovery. Test condition 3:500ppm NaCI,test pressure 100psi(6.9bar),77F(25℃),pH 7,15%recovery. |
||||||||
