DuPont UF SFP-2880 PVDF Membrane 8 Inch 77m² for Industrial Water

제품 상세 정보:

Place of Origin: China
브랜드 이름: Dupont
인증: CE
Model Number: SFP-2880
문서: UF-IntegraTec-P-Series-PVDF...en.pdf

결제 및 배송 조건:

Minimum Order Quantity: 1 pc
가격: 협상 가능
Packaging Details: standard export packing
Delivery Time: 5- 8 work days
Payment Terms: ,T/T
Supply Ability: 60000 Units per Month
최고의 가격 접촉

상세 정보

Flow Range of this model: 3.1 – 9.3 m3 /hr Membrane Area of this model: 77 m²
nominal pore diameter of this model: 0.03 µm Core material of this model: PVDF
Filtrate Flux of this model: 40-120 Diameter of this model: 8 inch
Product Flow direction settings: External pressure structure, dead end filtration Product Max. operating TMP: 2.1 bar
Product Max. inlet module pressure: 6.25 bar Membrane Operating pH: 2-11
Flow configuration: Outside in, dead end flow Core Certifications of this module: ISO 9001, NSF, CE
Advantage of this module: Very High Porosity,Large Flux Usage of this module: Industrial Process Water
강조하다:

DuPont UF PVDF membrane 8 inch

,

industrial water UF membrane 77m²

,

DOW UF membrane with PVDF

제품 설명

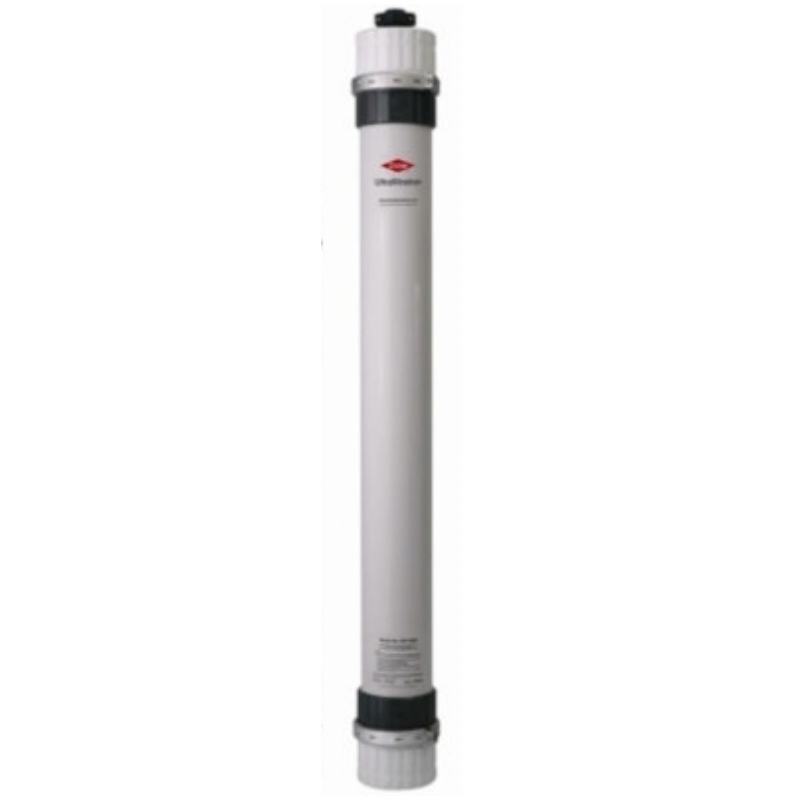

DuPont™ UF SFP-2880 High-Efficiency Filtration for Critical Water Applications
Product Overview

The DuPont™ UF SFP-2880 is an ultrafiltration membrane element utilizing a PVDF (polyvinylidene fluoride) hollow fiber structure. Designed for high-turbidity and highly contaminated water, it is suitable for demanding applications such as municipal wastewater reuse, industrial wastewater treatment, and food and beverage filtration. Leveraging DuPont's patented membrane technology, this product achieves industry-leading performance in terms of flux, fouling resistance, and service life.

Key Specifications
Attribute Value
Flow Range 3.1 – 9.3 m³/hr
Membrane Area 77 m²
Nominal Pore Diameter 0.03 µm
Core Material PVDF
Filtrate Flux 40-120
Diameter 8 inch
Flow Direction External pressure structure, dead end filtration
Max. Operating TMP 2.1 bar
Max. Inlet Module Pressure 6.25 bar
Operating pH Range 2-11
Certifications ISO 9001, NSF, CE
Typical Applications
  • Brackish water desalination (groundwater, wells)
  • Industrial process water (food & beverage, pharmaceuticals)
  • Wastewater recovery & reuse (mining, textiles, electronics)
  • Pre-treatment for ultrapure water (power plants, semiconductors)
Performance Advantages
30% lower energy consumption than comparable UF modules
3-5 year typical membrane lifespan with proper maintenance
Automated cleaning cycles maintain stable operation
NSF/ANSI 61 certified for drinking water applications
Product Specifications
Model Type Part # Membrane Area (m²) Weight (kg)
SFP-2880 Pretreatment 280934 77 61/100
SFD-2880 NSF/ANSI 61 Drinking water 324169 77 61/100
DuPont UF SFP-2880 PVDF Membrane 8 Inch 77m² for Industrial Water 0
Operating Parameters
Parameter SI Units US Units
Filtrate Flux @ 25ºC 40-120 l/m²/hr 24-70 gfd
Temperature Range 1-40ºC 34-104ºF
Max. Inlet Module Pressure 6.25 bar 93.75 psi
Max Operating Air Scour Flow 12 nm³/hr 7.1 scfm
Operating pH 2-11
Installation & Operation

Proper startup procedure is critical to prevent membrane damage and maintain system parameters within design specifications. Before startup:

  • Complete membrane preconditioning and module installation
  • Calibrate all instrumentation
  • Flush the system thoroughly to eliminate shipping solution
  • Purge residual air from the system
Note: Operating limits and guidelines must be strictly followed to maintain warranty coverage. Refer to the product technical manual for detailed instructions.
DuPont UF SFP-2880 PVDF Membrane 8 Inch 77m² for Industrial Water 1 DuPont UF SFP-2880 PVDF Membrane 8 Inch 77m² for Industrial Water 2
Application Cases

For detailed application cases, please visit: www.fgwater.com/Industries/
