DuPont XP 77 IG 8 Inch PVDF UF Membrane for Pharma and Beverage

제품 상세 정보:

Place of Origin: China
브랜드 이름: Dupont
인증: CE
Model Number: IntegraTec™ XP 77 IG (formerly SFP 2880XP)

결제 및 배송 조건:

Minimum Order Quantity: 1 pc
가격: 협상 가능
Packaging Details: standard export packing
Delivery Time: 5- 8 work days
Supply Ability: 60000 Units per Month
최고의 가격 접촉

상세 정보

XP 77 IG Diameter: 8 inch XP 77 IG Membrane Area of XP 77 IG: 77 m²
XP 77 IG Material: PVDF Flow Range Per Module: 2.0 – 8.5 m³/hr
Nominal pore diameter of XP 77 IG: 0.03 µm Operating Pressure of XP 77 IG: 1-5 bar
Max. operating TMP of this Module: 2.1 bar Max operating air scour flow of this Module: 12 nm3/hr
NaOCl (max.)of this Module: 2,000 mg/L Certifications of this model: ISO 9001, NSF, CE
Application: Pharma and Beverage Advantages of the model: High performance filtration solutions
강조하다:

DuPont XP 77 UF membrane

,

8 inch PVDF membrane

,

pharmaceutical UF membrane

제품 설명

DuPont IntegraTec™ XP 77 IG FDA Compliant L for Pharma and Beverage
Product Overview

The DuPont UF XP 77 IG is a high-performance ion exchange membrane designed for chlor-alkali electrolysis applications. It delivers high current efficiency (≥96%) and low energy consumption, enabling cost-effective production of caustic soda (NaOH), chlorine (Cl₂), and hydrogen (H₂).

Key Specifications
XP 77 IG Diameter 8 inch
Membrane Area 77 m²
Material PVDF
Flow Range Per Module 2.0 – 8.5 m³/hr
Nominal Pore Diameter 0.03 µm
Operating Pressure 1-5 bar
Max Operating TMP 2.1 bar
Certifications ISO 9001, NSF, CE
Key Features
  • Ultra-Strong PVDF Membrane Material - Resists tearing, abrasion, and chemical degradation
  • Superior Chemical Tolerance - Withstands aggressive cleaning agents and extreme pH conditions
  • Outer-to-In Filtration Design - Handles high solids content with minimal fouling
  • Precision-Level Filtration Efficiency - Removes microorganisms, colloids, and fine particulates
  • Optimized for Heavy-Duty Systems - Extended service life for industrial installations
Applications
  • Industrial Wastewater Reclamation (chemical processing, mining, power generation)
  • Seawater Pretreatment for Desalination Plants
  • Aggressive Process Water Treatment (textile dyeing, metal finishing, petrochemical)
  • Municipal Water Purification in High-Stress Environments
Technical Specifications
Parameter SI Units US Units
Filtrate Flux @ 25ºC 40-110 l/m²/hr 24-65 gfd
Flow Range 2.0 - 8.5 m³/hr 8.8 - 37.4 gpm
Temperature Range 1-40ºC 34-104ºF
Max Inlet Module Pressure (@ 20ºC) 6.25 bar 90.65 psi
Operating pH 2-11

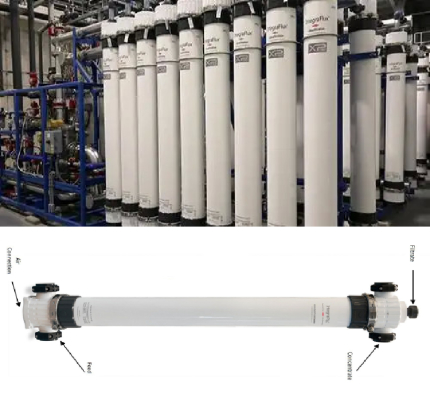

Product Dimensions
DuPont XP 77 IG 8 Inch PVDF UF Membrane for Pharma and Beverage 0
Installation
DuPont XP 77 IG 8 Inch PVDF UF Membrane for Pharma and Beverage 1 DuPont XP 77 IG 8 Inch PVDF UF Membrane for Pharma and Beverage 2
Application Cases

For application cases, please visit: www.fgwater.com/Industries/
