DuPont SFP-2860 UF Membrane: Advanced Pretreatment Solution for Pretreatment for RO Systems
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | DuPont |
| 인증: | CE |
| 모델 번호: | SFP-2860 |
| 문서: | UF-IntegraTec-P-Series-PVDF...en.pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 1 PC |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 표준 수출 포장 |
| 배달 시간: | 5-8 일 |
| 공급 능력: | 한 달에 60000 단위 |
|
상세 정보 |
|||
| SFP-2860-Membrane 영역: | 51 m² (549 ft²) | SFP-2860 플럭스 범위 (25 ° C): | 40–90 LMH |
|---|---|---|---|
| SFP-2860 MAX TMP: | 2.1 바 | SFP-2860 유량: | 2.0–6.9 m³/hr |
| SFP-2860 무게 (빈): | 48kg | 응용 프로그램: | RO 시스템의 전처리 |
| 강조하다: | DuPont SFP-2860 UF membrane,UF membrane for RO pretreatment,DOW UF membrane with warranty |
||
제품 설명
DuPont SFP-2860 UF Membrane: Advanced Pretreatment Solution for RO Systems
Product Overview

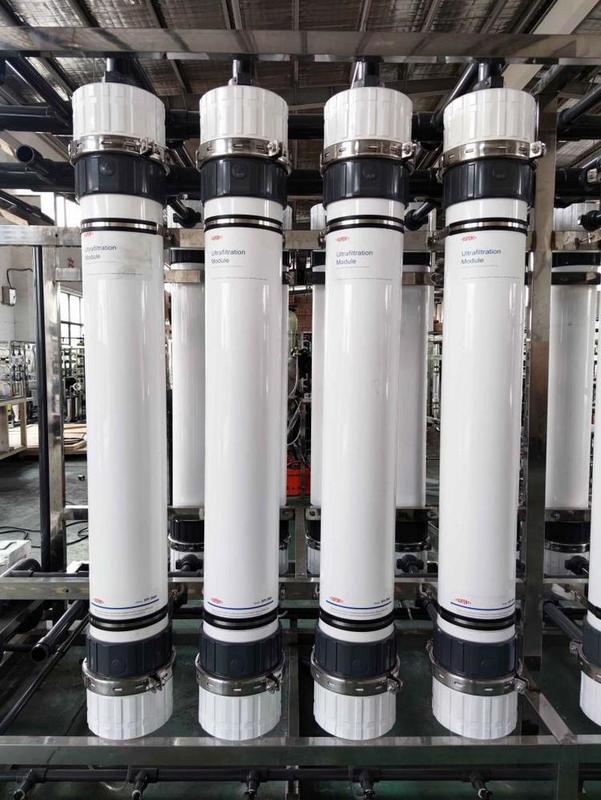

DuPont SFP-2860 ultrafiltration membrane delivers superior water treatment performance with its advanced hollow fiber technology. Designed for industrial applications, this membrane provides excellent removal efficiency for turbidity, bacteria, and viruses while maintaining high flux rates. Its robust construction ensures reliable operation in challenging water conditions with strong chemical resistance. Ideal for reverse osmosis pretreatment, wastewater reuse, and process water purification, the SFP-2860 offers low energy consumption, reduced maintenance requirements, and extended service life. The system features easy scalability for various capacity needs and simplified maintenance procedures.
Product Overview
DuPont SFP-2860 ultrafiltration membrane delivers superior water treatment performance with its advanced hollow fiber technology. Designed for industrial applications, this membrane provides excellent removal efficiency for turbidity, bacteria, and viruses while maintaining high flux rates. Its robust construction ensures reliable operation in challenging water conditions with strong chemical resistance. Ideal for reverse osmosis pretreatment, wastewater reuse, and process water purification, the SFP-2860 offers low energy consumption, reduced maintenance requirements, and extended service life. The system features easy scalability for various capacity needs and simplified maintenance procedures.
Key Features
- Precision Filtration: 0.03 μm nominal pore size removes bacteria, viruses, colloids, and particulates to protect downstream RO systems.
- Engineered Durability: Hydrophilic PVDF fibers offer superior mechanical strength and chemical resistance (pH 2-11) for extended service life.
- Space-Saving Design: Shorter length (1,860 mm / 73.2 in) ideal for low-ceiling installations with 51 m² (549 ft²) effective membrane area.
- Broad Compatibility: Processes surface water, seawater, industrial wastewater, and municipal effluents.
Technical Specifications
| Attribute | Value |
|---|---|
| Membrane Area | 51 m² (549 ft²) |
| Flux Range (25°C) | 40–90 LMH |
| Max TMP | 2.1 bar |
| Flow Rate | 2.0–6.9 m³/hr |
| Weight (Empty) | 48kg |
| Target Applications | Industrial wastewater reuse, Seawater pretreatment for desalination, Compact containerized plants, Cooling tower blowdown recovery |
Operating Parameters
| Parameter | SI Units | US Units |
|---|---|---|
| Filtrate Flux @ 25ºC | 40-120 l/m2/hr | 24-70 gfd |
| Flow range | 2.0 - 6.1 m3/hr | 9.2 - 26.7 gpm |
| Temperature | 1-40ºC | 34-104ºF |
| Max. inlet module pressure (@ 20ºC) | 6.25 bar | 93.75 psi |
| Max. operating TMP | 2.1 bar | 30 psi |
| Max operating air scour flow | 12 nm3/hr | 7.1 scfm |
| Max backwash pressure | 2.5 bar | 36 psi |
| Operating pH | 2-11 | |
Performance Guarantees
- Filtrate turbidity ≤0.1 NTU
- Filtrate SDI ≤2.5
Important Operation Guidelines
Proper start-up of a UF system is indispensable for preparing the membranes for operational service and preventing membrane damage. Adhering to the correct start-up sequence also contributes to ensuring that the operating parameters of the system conform to the design specifications.
Before commencing the system start-up procedures, membrane pretreatment, installation of the membrane modules, instrument calibration, and other system checks should be accomplished. Kindly refer to the product technical manual.
NOTICE: NSF/ANSI 61 certified drinking water modules demand specific conditioning procedures before generating potable water. Please refer to the flushing section of the product technical manual for detailed procedures.
Regulatory Note: The utilization of this product does not inevitably ensure the elimination of cysts and pathogens from water. Effective reduction depends on the complete system design as well as the operation and maintenance of the system.
