DuPont™ SFP-2880 UF Membrane: Advanced Water Purification for Industrial Applications
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | Dupont |
| 인증: | CE |
| 모델 번호: | SFP-2880 |
| 문서: | UF-IntegraTec-P-Series-PVDF...en.pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 1 PC |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 표준 수출 포장 |
| 배달 시간: | 5-8 일 |
| 지불 조건: | , t/t |
| 공급 능력: | 한 달에 60000 단위 |
|
상세 정보 |
|||
| 2880 모듈 플럭스 범위: | 25 ° C에서 40–90 LMH (24–53 GFD) | 2880 모듈 유량: | 2.0–6.9 m³/hr (8.8–30.4 gpm) |
|---|---|---|---|
| 2880 모듈 온도 한계: | 1–40 ° C (34–104 ° F) | 2880 모듈 최대 TMP 작동: | 2.1 바 (30.5 psi) |
| 화학적 내성: | 최대 2,000mg/L NAOCL을 견딜 수 있습니다 | 최적화 된 디자인: | 77m2 |
| 2880 모듈 넓은 응용 프로그램 범위: | 지표수, 해수, 시립 식수 생산 치료에 적합 | 막 유형: | 산업 등급의 한외 여과막 성분 |
| 강조하다: | DuPont UF membrane for industrial water purification,DOW UF membrane with high performance,SFP-2880 UF membrane for water treatment |
||
제품 설명
DuPont™ SFP-2880 UF Membrane: Advanced Water Purification for Industrial Applications
Product Overview
Engineered for excellence, the DuPont™ SFP-2880 ultrafiltration membrane represents cutting-edge water treatment technology. This premium-grade membrane utilizes state-of-the-art hollow fiber design to achieve exceptional filtration performance, effectively removing contaminants including pathogens, colloids, and particulate matter.
Specifically developed for demanding industrial environments, it serves as an ideal pretreatment solution for reverse osmosis systems and enables efficient wastewater recycling. The membrane demonstrates outstanding chemical compatibility and mechanical durability, ensuring stable operation under challenging conditions.
Key Features
- Advanced Filtration Performance: Removes bacteria, viruses, and colloids with high efficiency; achieves filtrate turbidity below 0.1 NTU and SDI under 2.5; ideal protection for reverse osmosis systems
- Engineered Durability: Chemical-resistant PVDF membrane withstands extreme pH conditions; U-PVC housing eliminates need for pressure vessels; operating temperature range supports global deployments
- High-Efficiency Design: Industry-leading membrane area enables high flow rates; outside-in flow handles high solids loading; reduced backwash frequency lowers water consumption
- Operational Reliability: Consistent performance in municipal and industrial settings; minimal maintenance requirements; compatible with automated control systems
Technical Specifications
| Attribute | Value |
|---|---|
| UF Module Flux Range | 40–90 LMH (24–53 gfd) at 25°C |
| Flow Rate per Module | 2.0–6.9 m³/hr (8.8–30.4 gpm) |
| UF Module Temperature Limits | 1–40°C (34–104°F) |
| UF Module Max Operating TMP | 2.1 bar (30.5 psi) |
| Chemical Tolerance | Withstands up to 2,000 mg/L NaOCl |
| Membrane Area | 77m² |
| Membrane Type | Industrial Grade Ultrafiltration Membrane Components |
Product Specifications
| Model | Type | Part # | Membrane Area (m²/ft²) | Volume (Liters/Gallons) | Weight (Kg/lbs) |
|---|---|---|---|---|---|
| SFP-2880 | Pretreatment | 280934 | 77 / 829 | 39 / 10.3 | 61 / 135 (empty), 100 / 220 (water filled) |
| SFD-2880 | NSF/ANSI 61 Drinking water | 324169 | 77 / 829 | 39 / 10.3 | 61 / 135 (empty), 100 / 220 (water filled) |
Operating Parameters
| Parameter | SI Units | US Units |
|---|---|---|
| Filtrate Flux @ 25ºC | 40-120 l/m²/hr | 24-70 gfd |
| Flow range | 3.1-9.3 m³/hr | 13.6 - 40.9 gpm |
| Temperature | 1-40ºC | 34-104ºF |
| Max. inlet module pressure (@ 20ºC) | 6.25 bar | 93.75 psi |
| Max. operating TMP | 2.1 bar | 30 psi |
| Max operating air scour flow | 12 nm³/hr | 7.1 scfm |
| Max backwash pressure | 2.5 bar | 36 psi |
| Operating pH | 2-11 | |
Important: If operating limits and guidelines given in this bulletin are not strictly followed, the limited warranty will be null and void. To prevent biological growth during system shutdowns, it is recommended that preservative solution be injected into the membrane modules.
Module Installation

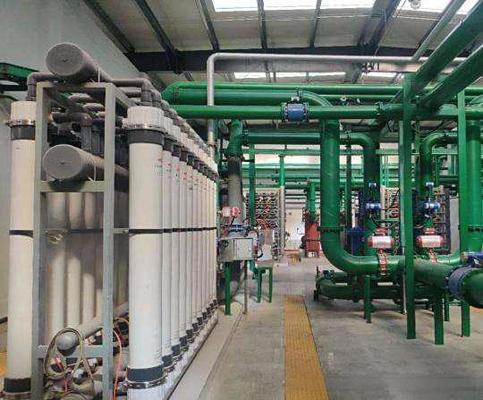

For application cases, please visit: www.fgwater.com/Industries/
