상세 정보 |
|||
| 18Z-5 최소 유량 M3/HR (GPM): | 1.02 (4.5) | 18Z-5 설계 유량 M3/HR (GPM): | 2.0-3.1 (9.0-13.5) |
|---|---|---|---|
| 18Z-5 배송 중량 kg (LBS) **: | 99 (217) | 18Z-5 작동 중량 kg (LBS): | 74 (163) |
| 18Z-5 회복: | 90–95% | 장점: | 고 흐름, 화학 물질이 없습니다 |
| 가장 밝은 부분: | Ionpure CEDI LX-Z 모듈, EDI 모듈 화학 물질 없음, IP-LXM18Z-5 수처리 모듈 | ||
제품 설명

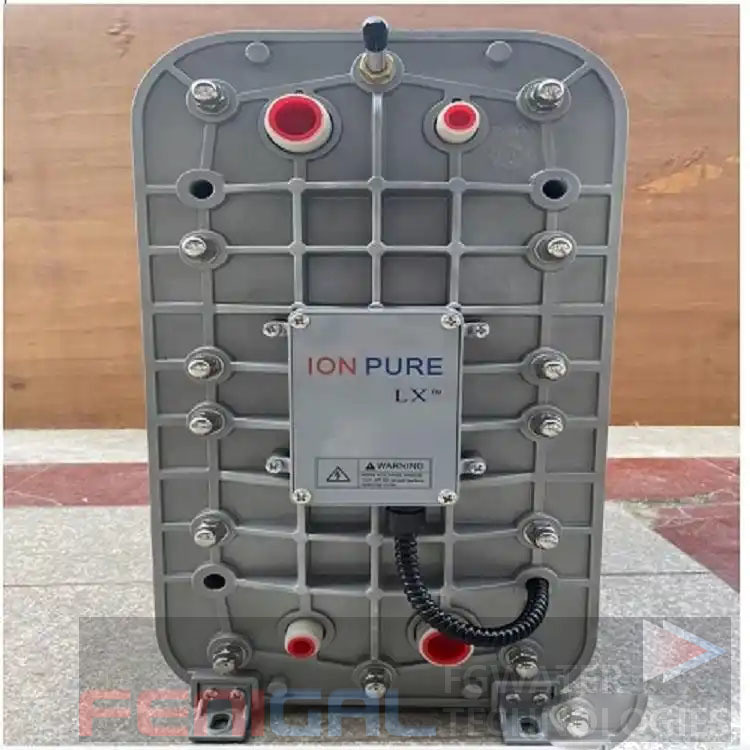

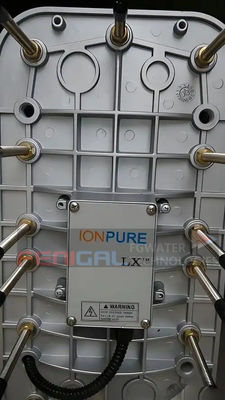

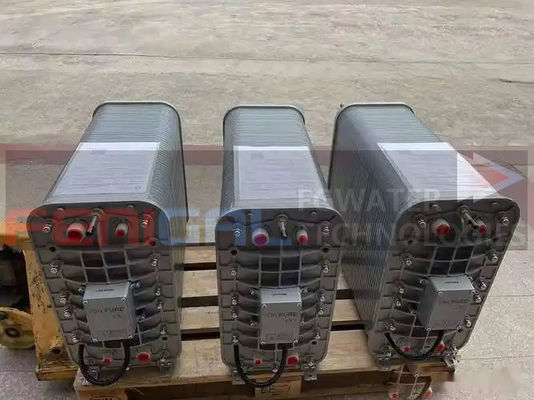

The Ionpure CEDI LX-Z IP-LXM18Z-5 is an industrial-grade Continuous Electrodeionization (CEDI) module from Xylem (Evoqua brand, formerly Siemens Ionpure). It generates ultrapure water (up to 17 MΩ·cm) without acid or alkali chemicals, replacing traditional mixed-bed ion exchange systems. CE-certified, made in China, and built to ISO 9001/14000 standards, it enables 24/7 uninterrupted operation—ideal for sectors needing consistent high-purity water, with 60% lower operational costs than conventional methods.
It serves critical industrial water needs:
• Power generation (boiler feed water)
• Petroleum, chemical, and steel production
• Pharmaceuticals (USP-purified water)
• Electronics/semiconductors (ultrapure water)
• Food and biotech manufacturing
|
Parameter |
Value |
|
Design Flow Rate |
2.0–3.1 m³/hr (9.0–13.5 gpm) |
|
Minimum Flow Rate |
1.02 m³/hr (4.5 gpm) |
|
Recovery Rate |
90–95% |
|
Product Resistivity |
>17 MΩ·cm (min flow); >7 MΩ·cm (max flow) |
|
Silica Removal |
90–99% (feed-dependent) |
|
Operating Temp |
5–45°C (41–113°F) |
|
Inlet Pressure |
1.4–6.9 bar (20–100 psig) |
|
Dimensions (L×C) |
488.2 mm × 353.8 mm (19.22"×13.93") |
|
Shipping Weight |
99 kg (217 lbs) |
|
Operating Weight |
74 kg (163 lbs) |
1. Chemical-Free Operation: No acid/alkali use or neutralization systems, cutting hazardous waste.
2. High Efficiency: 90–95% recovery minimizes wastewater; adaptive DC power saves energy.
3. Durability: Dual O-ring seals prevent leaks (up to 7 bar pressure); strong insulation avoids current leakage.
4. Easy Integration: Pre-installed junction box and standardized CPVC spacers fit new/retrofit systems.
Q1: What’s the minimum order quantity?
A1: 1 pc, supporting small-batch trials.
Q2: How long is delivery?
A2: 5–8 working days with standard export packing.
Q3: What feed water is required?
A3: RO permeate with conductivity <40 μS/cm and chlorine <0.05 ppm.
Each Ionpure CEDI LX-Z IP-LXM18Z-5 undergoes pre-shipment testing. Technical support includes installation guidance and maintenance tips. Monthly supply capacity reaches 60,000 units for stable orders; payment via T/T. For application cases, visit FG Water Technologies.
