BW30-400IG Compatible RO Membrane Element 8040 OEM Replacement with 10500 GPD Flow and 99.5% Rejection Polyamide Thin-Film Composite
제품 상세 정보:
| 원래 장소: | 중국 광둥 |
| 브랜드 이름: | FILTERPRO |
| 인증: | ISO 9001:2015 |
| 모델 번호: | BW30-400IG-C |
결제 및 배송 조건:
| 최소 주문 수량: | 1개 조각 |
|---|---|
| 가격: | USD 180-280 / Piece |
| 포장 세부 사항: | 건조제가 포함된 수출 등급 상자에 진공 밀봉된 개별 포장, 팔레트 사용 가능 |
| 배달 시간: | 재고 보유 기간은 영업일 기준 3~5일, 생산 기간은 15~20일 |
| 지불 조건: | T/T, L/C, 페이팔, 웨스턴 유니온 |
| 공급 능력: | 달 당 5000 조각 |
|
상세 정보 |
|||
| 멤브레인 요소 크기: | 8040(8인치 x 40인치) | 활성 멤브레인 영역: | 37m²(400피트²) |
|---|---|---|---|
| 침투 흐름 속도: | 10500 GPD(39.7m³/일) | 안정적인 염분 거부율: | 99.5% |
| 작동 압력: | 225PSI(15.5바) | 멤브레인 소재: | 폴리아미드 박막 복합재 |
| 호환 가능: | 다우필름텍 BW30-400IG | 급수 TDS: | 2000ppm 이하 |
| Ph 범위: | 2-11 | ||
| 강조하다: | OEM Compatible RO Replacement,DOW FILMTEC BW30 Alternative,8040 Brackish Water Membrane |
||
제품 설명
BW30-400IG Compatible RO Membrane Element 8040 OEM Replacement for DOW FILMTEC 10500 GPD 99.5% Rejection
Product Overview

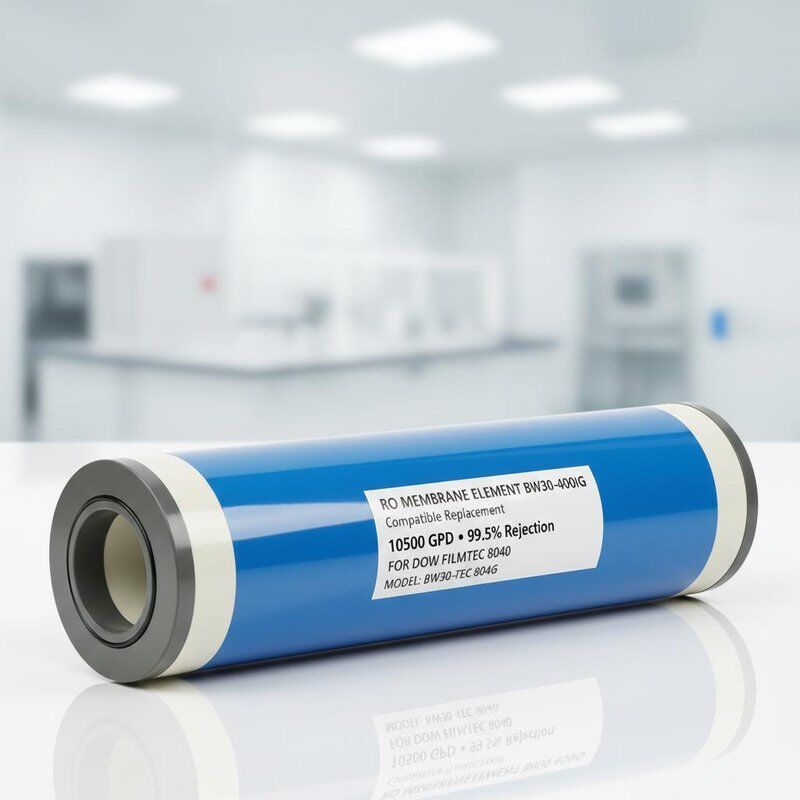

The FILTERPRO BW30-400IG-C is a high-performance OEM compatible reverse osmosis membrane element engineered as a direct drop-in replacement for DOW FILMTEC BW30-400IG. It delivers consistent, reliable brackish water desalination at a competitive price point, making it the ideal choice for system operators seeking to reduce maintenance costs without compromising water quality.
Key Features
- Direct OEM Compatibility: Designed to the same form factor and performance specifications as the original DOW FILMTEC BW30-400IG, ensuring seamless integration into existing 8040 membrane housings and RO skids.
- High Permeate Flow: Produces up to 10,500 GPD (39.7 m³/day) of purified water under standard test conditions, meeting the demands of medium to large-scale industrial RO plants.
- Stable Salt Rejection: Achieves and maintains 99.5% salt rejection over the membrane's service life, ensuring consistent product water quality.
- Industrial-Grade Construction: Polyamide thin-film composite (TFC) membrane with fiberglass outer wrap for mechanical strength and durability in demanding operating environments.
- Cost-Effective Alternative: Delivers comparable performance to branded OEM membranes at 30-50% lower cost, reducing total cost of ownership for water treatment facilities.
Technical Specifications
| Parameter | Value |
|---|---|
| Membrane Element Size | 8040 (8" x 40") |
| Active Membrane Area | 400 ft² (37 m²) |
| Permeate Flow Rate | 10,500 GPD (39.7 m³/day) |
| Stable Salt Rejection | 99.5% |
| Operating Pressure | 225 PSI (15.5 bar) |
| Membrane Material | Polyamide Thin-Film Composite |
| Feed Water TDS | ≤ 2,000 ppm |
| pH Range (Operating) | 2-11 |
| Max Operating Temperature | 45°C (113°F) |
| Free Chlorine Tolerance | < 0.1 ppm |
Applications
- Industrial brackish water reverse osmosis systems
- Power generation facilities
- Food and beverage processing
- Pharmaceutical manufacturing
- Municipal drinking water treatment
Compatible with all standard 8040 membrane pressure vessels.
Packaging and Warranty
Each membrane element is vacuum sealed in a heavy-duty polyethylene bag with food-grade preservative solution, packed in an export-grade corrugated carton, and includes a desiccant pouch. Standard warranty: 12 months from date of shipment under normal operating conditions.
