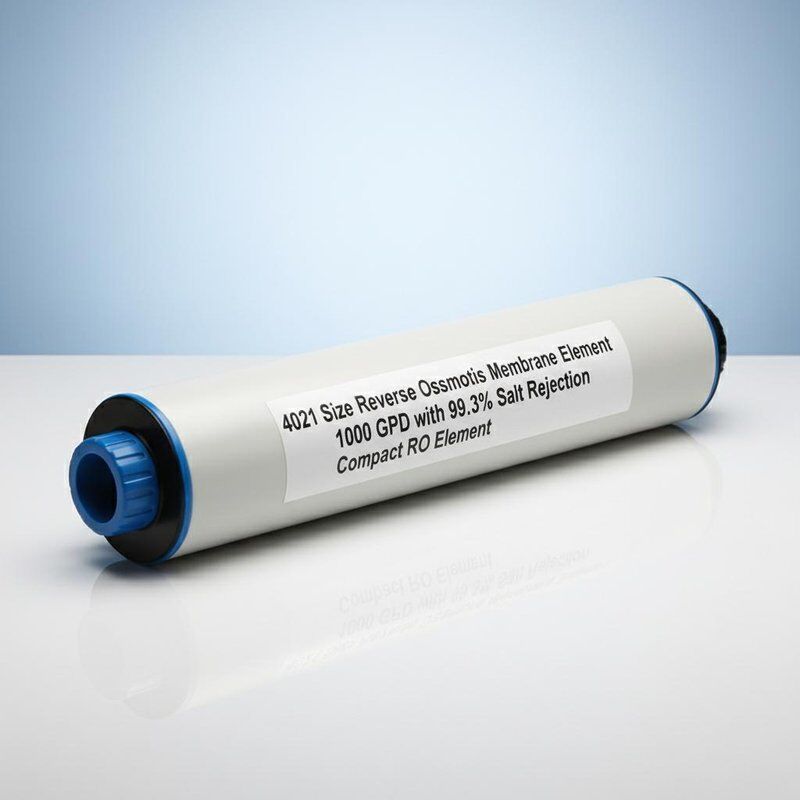

4021 Size Reverse Osmosis Membrane Element 1000 GPD with 99.3% Salt Rejection Compact RO Element
제품 상세 정보:
| 원래 장소: | 중국 광둥 |
| 브랜드 이름: | FILTERPRO |
| 인증: | ISO 9001:2015 |
| 모델 번호: | FP-4021-RO |
결제 및 배송 조건:
| 최소 주문 수량: | 1개 조각 |
|---|---|
| 가격: | USD 35-75 / Piece |
| 포장 세부 사항: | 방부제 용액이 담긴 보호 상자에 진공 밀봉된 개별 포장 |
| 배달 시간: | 재고는 영업일 기준 2~3일, 생산은 10~15일 |
| 지불 조건: | T/T, L/C, 페이팔, 웨스턴 유니온 |
| 공급 능력: | 달 당 15000 조각 |
|
상세 정보 |
|||
| 멤브레인 요소 크기: | 4021(4인치 x 21인치) | 활성 멤브레인 영역: | 3.3m²(36피트²) |
|---|---|---|---|
| 침투 흐름 속도: | 1000 GPD(3.8m³/일) | 안정적인 염분 거부율: | 99.3% |
| 작동 압력: | 150PSI(10.3바) | 멤브레인 소재: | 폴리아미드 박막 복합재 |
| 투과 튜브 직경: | 0.75 인치 | 피드 스페이서 두께: | 2800만 |
| Ph 범위: | 2-11 | ||
| 강조하다: | 4021 Compact RO Membrane,1000 GPD Industrial Element,4x21 Inch Reverse Osmosis |
||
제품 설명
The FP-4021-RO is a compact 4021 size reverse osmosis membrane element (4-inch diameter x 21-inch length) engineered for applications where space is at a premium without sacrificing filtration performance. Delivering 1000 GPD of purified water with 99.3% salt rejection, this half-length element is the perfect choice for portable, laboratory, and small-scale industrial RO systems.
- Compact 4021 Form Factor: Half the length of a standard 4040 element, the 4021 size fits into tight spaces and lightweight mobile RO units. Ideal for systems where equipment footprint is a critical design constraint.
- 1000 GPD Industry Standard Output: Meets the most common flow requirement for small RO systems including laboratory water purifiers, dental clinic RO units, and portable field water treatment equipment.
- 99.3% Reliable Salt Rejection: Polyamide thin-film composite membrane delivers consistent desalination performance for brackish water with feed TDS up to 2000 ppm.
- Lightweight Design: At approximately 2.5 kg per element, the 4021 form factor enables easy handling, installation, and replacement by a single technician.
- Universal Compatibility: Fits all standard 4021 membrane housings with 0.75-inch permeate tube connection, ensuring broad compatibility with existing systems from multiple manufacturers.
| Parameter | Value |
|---|---|
| Membrane Element Size | 4021 (4" x 21") |
| Active Membrane Area | 36 ft² (3.3 m²) |
| Permeate Flow Rate | 1,000 GPD (3.8 m³/day) |
| Stable Salt Rejection | 99.3% |
| Operating Pressure | 150 PSI (10.3 bar) |
| Max Operating Pressure | 300 PSI (20.7 bar) |
| Membrane Material | Polyamide TFC |
| Permeate Tube Diameter | 0.75" (19 mm) |
| Feed Spacer Thickness | 28 mil |
| pH Range (Continuous) | 2-11 |
| Max Feed Temperature | 45°C (113°F) |
| Element Weight (Wet) | Approx. 2.5 kg |
Designed for laboratory water purification systems (Type II/III water), dental and medical clinic RO units, portable field water treatment equipment for military and disaster relief, small commercial ice makers and coffee machines, and vehicle-mounted or shipboard water purification systems. Also suitable for pilot-scale industrial RO testing and process development.
