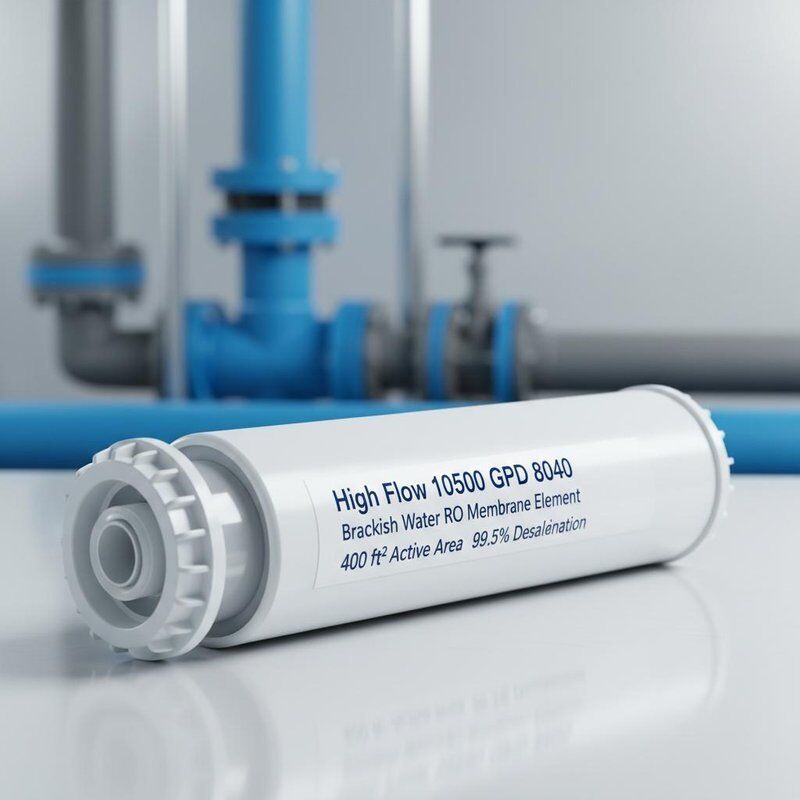

High Flow 10500 GPD 8040 Brackish Water RO Membrane Element with 400 ft² Active Area and 99.5% Desalination
제품 상세 정보:
| 원래 장소: | 중국 광둥 |
| 브랜드 이름: | FILTERPRO |
| 인증: | ISO 9001:2015 |
| 모델 번호: | FP-8040-HF |
결제 및 배송 조건:
| 최소 주문 수량: | 1개 조각 |
|---|---|
| 가격: | USD 200-320 / Piece |
| 포장 세부 사항: | 건조제가 포함된 수출 등급 상자에 들어 있는 진공 밀봉된 튼튼한 PE 백, 팔레트 운송 가능 |
| 배달 시간: | 재고 보유 기간은 영업일 기준 3~5일, 생산 기간은 15~25일 |
| 지불 조건: | T/T, L/C, 페이팔, 웨스턴 유니온 |
| 공급 능력: | 달 당 8000개 부분 |
|
상세 정보 |
|||
| 멤브레인 요소 크기: | 8040(8인치 x 40인치) | 활성 멤브레인 영역: | 37m²(400피트²) |
|---|---|---|---|
| 침투 흐름 속도: | 10500 GPD(39.7m³/일) | 안정적인 염분 거부율: | 99.5% |
| 작동 압력: | 225PSI(15.5바) | 멤브레인 소재: | 폴리아미드 박막 복합재 |
| 급수 TDS: | 2000ppm 이하 | 공급 유량: | 70GPM(15.9m³/h) |
| 농축유량: | 55GPM(12.5m³/h) | Ph 범위: | 2-11 |
| 강조하다: | High Flow 10500 GPD RO,8040 Brackish Water Element,400ft² Industrial Grade Membrane |
||
제품 설명
The FP-8040-HF is a high-flow 8040 brackish water reverse osmosis membrane element engineered for maximum permeate production in large-scale industrial and municipal water treatment facilities. With 400 square feet of active membrane area and a rated output of 10,500 GPD (39.7 m³/day), this element delivers industry-leading throughput that reduces the total number of membrane elements required per plant — lowering capital expenditure and footprint.
- 10,500 GPD Rated Permeate Flow: Achieves 10% higher water production compared to standard 9,500 GPD 8040 membranes, enabling fewer elements per train and reduced membrane housing requirements without sacrificing permeate quality.
- 400 ft² Optimized Active Area: Advanced automated membrane leaf rolling technology maximizes the active surface area within the standard 8040 envelope, achieving the highest packing density in its class while maintaining consistent inter-leaf spacing for uniform flow distribution.
- 99.5% Stable Salt Rejection: Polyamide thin-film composite membrane chemistry delivers reliable desalination performance with less than 0.1% rejection decline per year under normal operating conditions, ensuring predictable long-term water quality.
- Industrial-Grade Construction: Heavy-duty fiberglass outer wrap, ATD (automated tape dispensing) brine seal, and precision-machined permeate tube connections ensure reliable performance in demanding 24/7 industrial environments.
- Reduced System Footprint: For a 500,000 GPD RO plant, using FP-8040-HF elements reduces the required element count from 53 to 48 vs. standard 9,500 GPD membranes, saving one full pressure vessel and associated plumbing.
| Parameter | Value |
|---|---|
| Membrane Element Size | 8040 (8" x 40") |
| Active Membrane Area | 400 ft² (37 m²) |
| Permeate Flow Rate | 10,500 GPD (39.7 m³/day) |
| Stable Salt Rejection | 99.5% |
| Operating Pressure | 225 PSI (15.5 bar) |
| Max Operating Pressure | 600 PSI (41.4 bar) |
| Membrane Material | Polyamide TFC |
| Feed Flow Rate Range | 35-75 GPM (8-17 m³/h) |
| Max Feed SDI (15 min) | ≤ 5 |
| pH Range (Continuous) | 2-11 |
| pH Range (Cleaning, 30 min) | 1-13 |
| Max Feed Temperature | 45°C (113°F) |
| Free Chlorine Tolerance | < 0.1 ppm |
Designed for municipal drinking water plants (500,000-5,000,000 GPD capacity), industrial process water for power generation and semiconductor manufacturing, boiler feed water production, food and beverage ingredient water, and large-scale bottled water production facilities. Compatible with all standard 8-inch multi-element pressure vessels from major manufacturers.
Our engineering team provides complimentary RO system design review including array configuration optimization, permeate staging calculation, and projected membrane performance modeling using industry-standard projection software. Contact us with your feed water analysis for a customized system recommendation.
