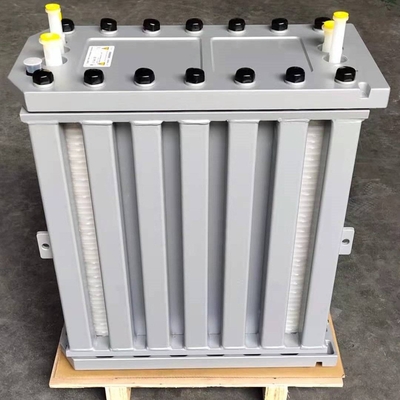

Veolia MK-9 EDI Stack 35 GPM Ultrapure Water for Solar PV
제품 상세 정보:
| Place of Origin: | China |
| 브랜드 이름: | VEOLIA |
| 인증: | CE |
| Model Number: | MK-9 |
| 문서: | Veolia EDI catalog.pdf |
결제 및 배송 조건:
| Minimum Order Quantity: | 1 pc |
|---|---|
| 가격: | 협상 가능 |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Payment Terms: | ,T/T |
| Supply Ability: | 60000 Units per Month |
|
상세 정보 |
|||
| Stack Name: | MK-9 | Dimensions (cm as width x height x depth): | 30 x 61 x 74 |
|---|---|---|---|
| Total exchangeable anions (ppm as CaCO3 ): | <13 | Conductivity (μS/cm): | <22 |
| pH: | 4-11 | Temperature (°C): | 4.4-40 |
| Hardness (ppm as CaCO3 ): | <1.0 | Silica (ppm as SiO2 ): | <1.0 |
| Typical designed water production (m3 /hr): | 6.0-10.0 | Recovery: | Up to 97% |
| Voltage: | 0–400 VDC | Typical New-Build Applications: | Solar Photovoltaics And Green Hydrogen |
| 강조하다: | Veolia MK-9 EDI Stack,35 GPM ultrapure water system,EDI stack for solar PV |
||
제품 설명
35 GPM Veolia MK-9 EDI Stack Ultrapure Water for Solar Photovoltaics and Green Hydrogen
Product Specifications
| Attribute | Value |
|---|---|
| Stack Name | MK-9 |
| Dimensions (cm) | 30 x 61 x 74 (W x H x D) |
| Total exchangeable anions (ppm as CaCO3) | <13 |
| Conductivity (μS/cm) | <22 |
| pH Range | 4-11 |
| Temperature Range (°C) | 4.4-40 |
| Hardness (ppm as CaCO3) | <1.0 |
| Silica (ppm as SiO2) | <1.0 |
| Typical designed water production (m3/hr) | 6.0-10.0 |
| Recovery Rate | Up to 97% |
| Voltage | 0–400 VDC |
| Typical Applications | Solar Photovoltaics And Green Hydrogen |
Product Overview
The Veolia MK-9 EDI Stack delivers 35 GPM of ultrapure water for demanding industrial applications. E-Cell EDI technology, based on proven production practices, provides industry-leading product water quality, energy efficiency, and reliability.
Key Features & Benefits
- Optimized Flow Rate (8.0 m³/h): Designed for mid-to-large-scale industrial systems requiring reliable high-purity water production
- Veolia/Suez Advanced EDI Technology: Incorporates next-generation MK-9 membrane and spacer design for superior ion removal efficiency
- Zero Chemical Regeneration: Eliminates hazardous acid/caustic regeneration chemicals, reducing operational costs and environmental impact
- Enhanced Energy Efficiency: Optimized stack hydraulics minimize power consumption per liter of purified water
- Robust Design & Reliability: Engineered for 24/7 continuous operation with high resistance to scaling and fouling
- Smart Operation & Integration: Compatible with modern PLC/SCADA systems for real-time monitoring
Technical Parameters
| Parameter | Value |
|---|---|
| Brand | Veolia EDI |
| Inlet Pressure | 6.9 bar (100 psi) |
| Max Temperature | 40°C (104°F) |
| Pressure Drop | 2.4-3.4 bar (35-50 psi) |
| Flow Rate | 8.0m3/h |
| Shipping Weight | 165 kg (364 lbs) |
Key Advantages
- Continuously produces ultrapure water of mixed bed water quality
- No acid and base regeneration required
- Guaranteed leak-proof design
- Simplified system design with no brine injection or concentrated water circulation
Typical Applications
- Power generation (NOx, boiler feed water)
- Electronics manufacturing
- General industrial applications
- Pharmaceutical & Biotech (WFI pre-treatment)
- Microelectronics & Semiconductor Manufacturing
- Laboratory Ultra-Pure Water Systems
Why Choose Veolia MK-9 EDI?
As the direct successor to Suez's industry-leading E-Cell™ technology, the MK-9 stack leverages Veolia's global expertise in water treatment. It delivers unmatched operational efficiency, sustainability, and reliability for demanding 8.0 m³/h ultrapure water applications, backed by Veolia's worldwide service and support network.
