Veolia MK-3 EDI Stack 15 GPM Ultrapure Water for Semiconductor
제품 상세 정보:
| Place of Origin: | China |
| 브랜드 이름: | VEOLIA |
| 인증: | CE |
| Model Number: | Veolia EDI Modules E-Cell MK-3 |
| 문서: | Veolia EDI catalog.pdf |
결제 및 배송 조건:
| Minimum Order Quantity: | 1 pc |
|---|---|
| 가격: | 협상 가능 |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
상세 정보 |
|||
| MK-3 Maximum water production (m3 /hr): | 4.5 | MK-3 Minimum water production (m3 /hr): | 1.6 |
|---|---|---|---|
| MK-3 Recovery: | up to 96% | MK-3 Shipping Weight of this stack: | 100 kg (220 lbs) |
| MK-3 Hardness (ppm as CaCO3 ): | <1.0 | Sodium of this stack: | ≤ 3 ppb |
| Boron of this stack: | As low as 0.08 ppb | pH Range: | 4 to 11 |
| Color: | ≤ 5 APHA | Resistivity: | ≥ 16 MOhm-cm |
| Module Application: | Industrial High Purity Water Preparation | ||
| 강조하다: | Veolia MK-3 EDI Stack,15 GPM ultrapure water system,semiconductor EDI water treatment |
||
제품 설명
Veolia MK-3 EDI Stack Ultrapure Water System
Industrial-grade continuous electrodeionization technology for semiconductor and flat panel display applications.
Key Specifications
| Attribute | Value |
|---|---|
| Maximum water production (m³/hr) | 4.5 |
| Minimum water production (m³/hr) | 1.6 |
| Recovery | Up to 96% |
| Shipping Weight | 100 kg (220 lbs) |
| Hardness (ppm as CaCO₃) | <1.0 |
| Sodium | ≤ 3 ppb |
| Boron | As low as 0.08 ppb |
| pH Range | 4 to 11 |
| Color | ≤ 5 APHA |
| Resistivity | ≥ 16 MOhm-cm |
| Application | Industrial High Purity Water Preparation |
Veolia E-Cell® EDI Technology
Industrial-grade continuous electrodeionization technology utilizing DC electric fields to drive ion migration, combining ion-exchange resins and selective membranes for continuous impurity removal.
Core Technology Advantages
- In-situ electrochemical regeneration: Eliminates chemical acid/base regeneration
- Three-channel design: Counter-current operation reduces scaling risks (verified pressure drop: 1.4-3.4 bar)
- Chemical-free operation: Complies with ISO 14001 standards
- Compact modularity: MK-series depth 29-74 cm for space efficiency
- Thermal sanitization: Supports 85°C hot-water sanitization (≥160 cycles), meeting cGMP
- Energy optimization: 20% reduced energy consumption vs conventional EDI (0-400 VDC)
Detailed Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Flow | 3.4 m³/h (15 gpm) |
| Flow Rate Range | 1.7 - 4.5 m³/h (7.0 - 20 gpm) |
| Dimensions (W x H x D) | 30 cm x 61 cm x 54 cm (12" x 24" x 22") |
| Product Water Quality | Resistivity ≥ 16 MOhm-cm, Sodium ≤ 3 ppb, Silica ≤ 5 ppb, Boron ≤ 0.08 ppb |
| Removal Efficiencies | Sodium ≥ 99.9%, Silica up to 99%, Boron up to 96% |
| Operating Parameters | Voltage 0-300 VDC, Amperage 0-5.2 ADC, Inlet Pressure ≤ 6.9 bar |
Typical Applications

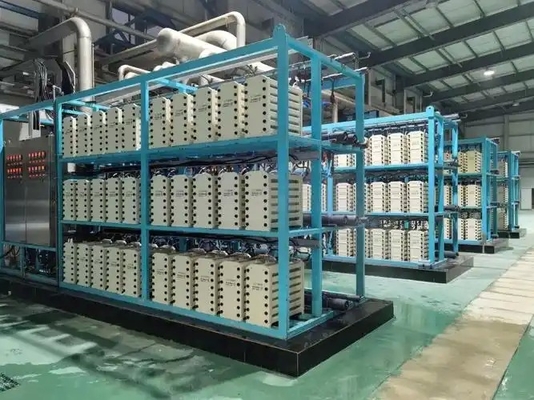

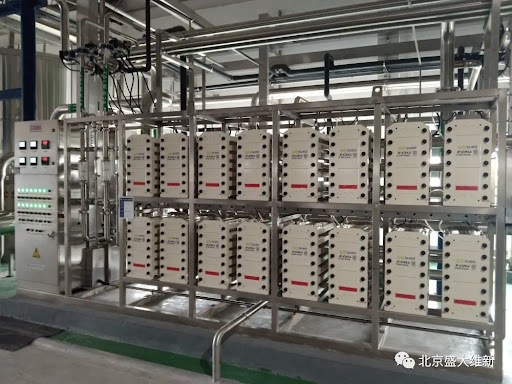

- Ultrapure water for semiconductor chip rinsing and microelectronics
- Demineralized boiler feed water for power plants and industrial facilities
Quality Assurance
- CE, RoHS, CSA, and EAC certified
- ISO 9001 and ISO 14001 compliant manufacturing
- UKCA certified
- Halal certified by IFANCA®
Note: Actual performance may vary based on site conditions. Refer to Winflows Prediction Software for detailed performance verification.
For more models and information, visit: https://www.fgwater.com/Veolia-Electrodeionization-EDI-Stack-Module/389.html
